Welding Column & Boom
Heavy-Duty Column and Boom Welding Manipulator
It is also called a Welding Head Manipulator, where the head is mounted at one end of the boom. It is used in welding application where long seam welding needs to be done and also used as a Weld Head Locator in case of circular seam welding. Precision machined column and boom ensures smooth travel of boom, which makes it suitable for GTAW,GMAW and SAW applications
Types of Column and Boom
- Pedestal mounted Column & Boom.
- Trolley mounted Column & Boom.
- Internal Pipe Welding Column & Boom.
- Custom Made Column & Boom.
Features
- Increased Production.
- Improved Weld Quality.
- Reduced Labor Costs.
- Enhanced Safety.
- Greater Flexibility.
- Reduced Material Waste.
Applications
- Structural steel Industry.
- Petrochemicals.
- Heavy Machinery.
- PEB.
- Ship Industry
Specifications for Welding Column & Boom
| Model | CB1515 | CB2020 | CB3030 | CB4040 | CB5050 | CB6060 |
| Vertical Stroke(mm) | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Horizontal Stroke(mm) | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Boom Traverse speed (mm/min) | 150-1250 | 150-1250 | 150-1250 | 150-1250 | 150-1250 | 150-1250 |
| Boom Lifting Speed (mm/min) | 750 | 750 | 750 | 750 | 600 | 600 |
| Max Load at Extremity (kg) | 100 | 100 | 200 | 200 | 300 | 300 |
Column & Boom Designs for Welding Applications

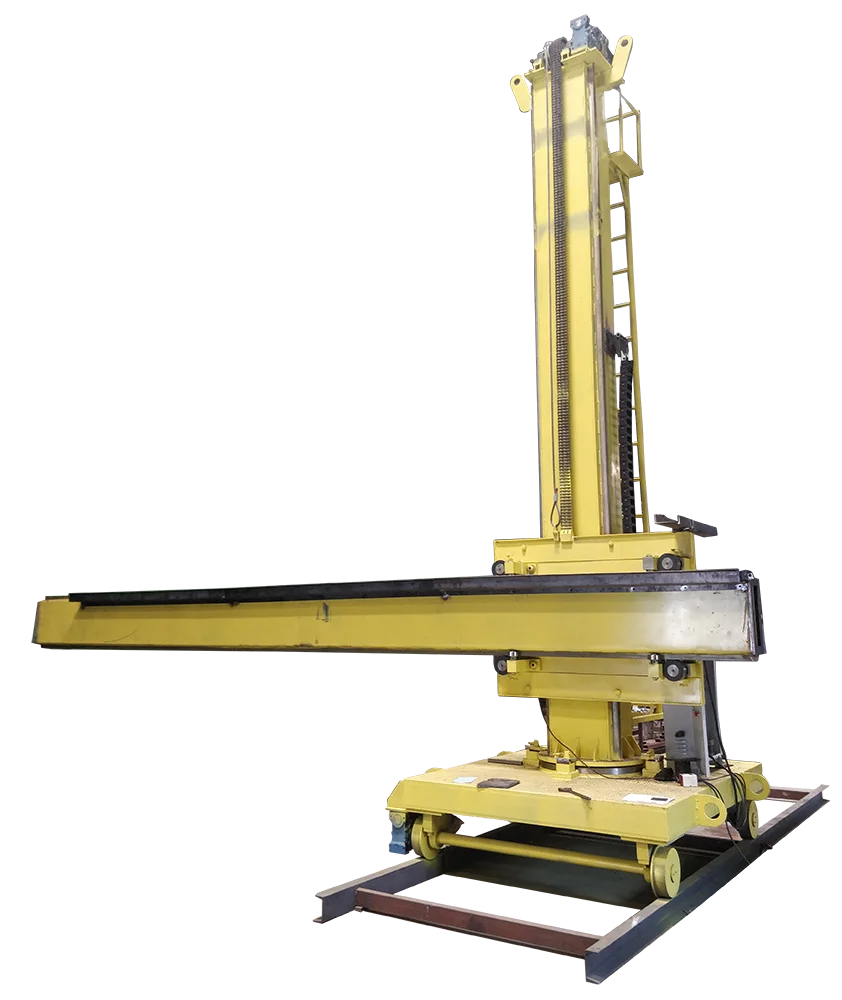

Trolley Mounted

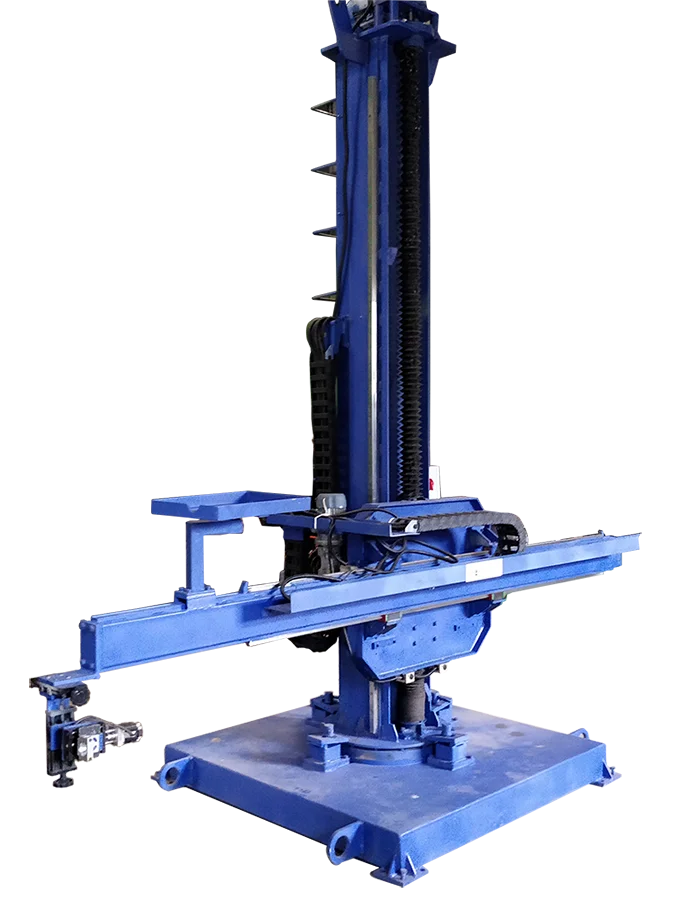

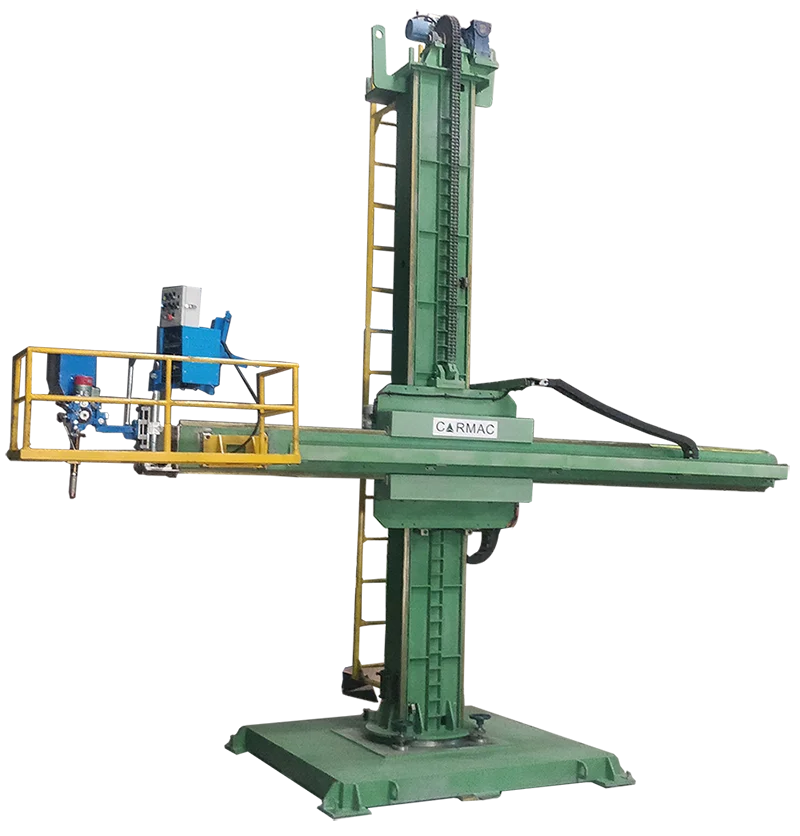

Pedestel Mounted
